Engine

Model

Isuzu BB-6BGTRP or Cummins (Tier II, Made in Japan)

Type

Six-cylinder, mechanical injection, turbocharged, water cooled

Rated power

110kw

Peak Torque

550N·m@1600rpm

Rated speed

1950rpm

Displacement

6.494L

Fuel consumption

237gr/kw.g

Main Technical Specification

Operating weight

34500kg

Standard bucket capacity

0.8m3

Slewing speed

12rpm

Stick digging force

94.5KN

Bucket digging force

120KN

Hydraulic System

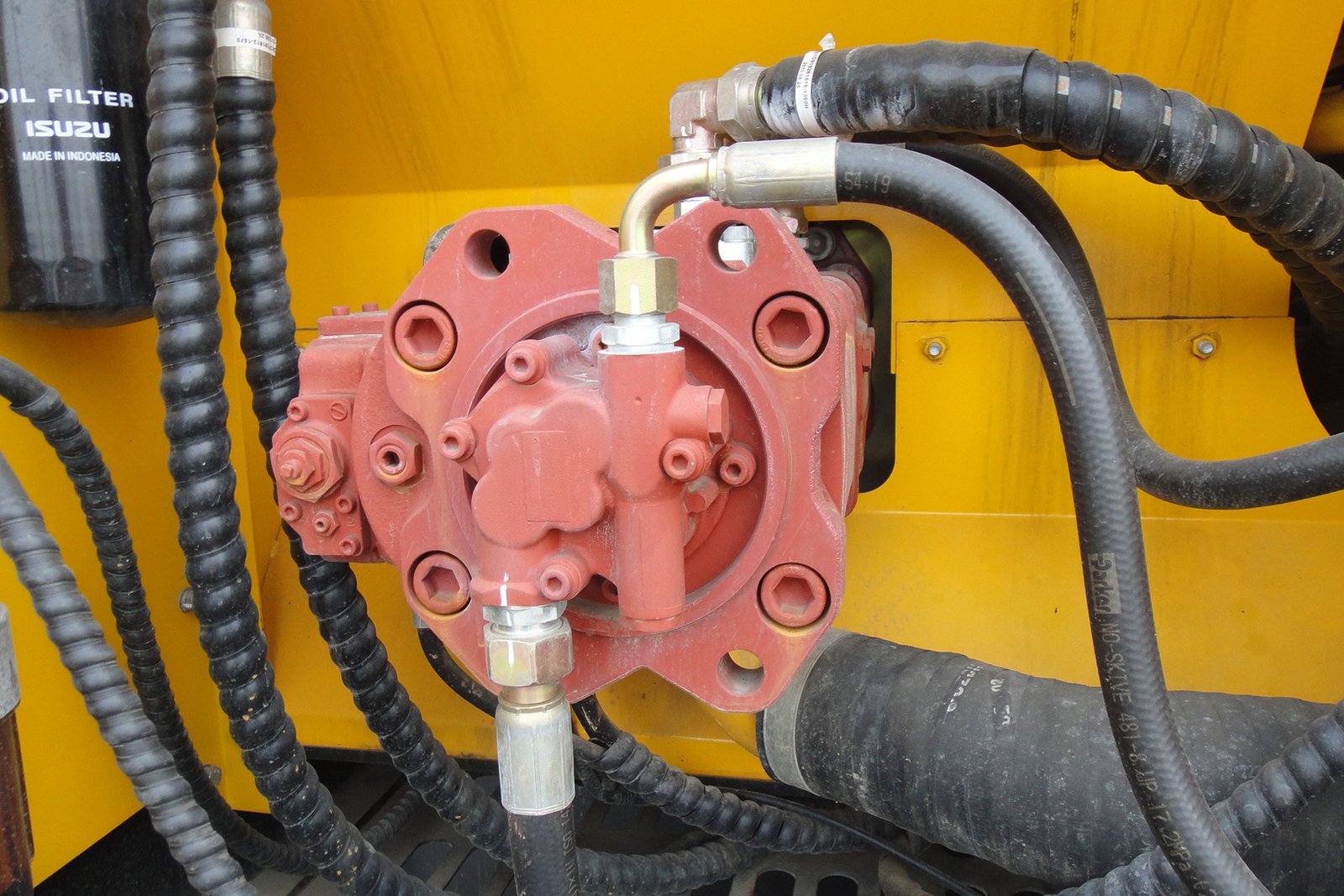

Main pump

Kawasaki plunger pump

Main pump flow rate

2×107 L/min

Main valve

Kawasaki or Parker

Swing Motor

Kawasaki/Jesung

Hydraulic pressure

32Mpa

Traveling Motor

Doosan

Traveling System

Traveling speed

0~4.88Km/h

Grade ability

70%

Ground pressure

0.014Mpa

Dimensions

Overall length

11200mm

Overall width

6000mm

Overall height

3950mm

Ground clearance

1210mm

Rear-end length/Slewing radius

2750mm

Width of pontoon

1500mm

Length of pontoon

9500mm

Height of pontoon

1700mm

Operating Scope

Max cutting height

11500mm

Max dumping height

9400mm

Max digging depth

7500mm

Max reach

10800mm
